Static Relay (Motor Protection Relay)
The Rishabh Protector is designed to monitor the correct phase rotation or sequence of 3 phase system R, Y, B. Rotating machines are particularly vulnerable to incorrect phase sequence.
Product Overview
The Rishabh Protector is designed to monitor the correct phase rotation or sequence of 3 phase system R, Y, B. Rotating machines are particularly vulnerable to incorrect phase sequence.
MPR is an auxiliary relay and it should be used
along with the motor starter only.
The effective working of MPR will depend on efficient
working of electromagnetic motor starter.
Before installing MPR check whether the motor starter
is operating perfectly by starting the motor with"START"
push button and switching it off by "OFF" push button.
Automatic, manual & remote reset available
LED indication for Trip & Power ON
Polycarbonate casing (UL 94 V-0)
Protective clear terminal cover (UL 94 V-0)
For more details please refer datasheet.
Technical Specifications
MPR is an auxiliary relay and it should be used
along with the motor starter only.
The effective working of MPR will depend on efficient
working of electromagnetic motor starter.
Before installing MPR check whether the motor starter
is operating perfectly by starting the motor with"START"
push button and switching it off by "OFF" push button.
Automatic, manual & remote reset available
LED indication for Trip & Power ON
Polycarbonate casing (UL 94 V-0)
Protective clear terminal cover (UL 94 V-0)
For more details please refer datasheet.
Talk To Our Technical Experts
Related Products
Static Relay (Transducer Trip Relay)
The Rishabh transducer trip Relay will accept analogue signal from most measuring transducer and transmitters, in the form of d. c. voltage or currents.
Current Protection (AC Current Relay)
The Rishabh AC Current Protectors provide continuous surveillance of the monitored circuit.The Rishabh AC Current Protectors provide continuous surveillance of the monitored circuit. When the measured current moves outside
Protective Relay (Combined Under / Over Voltage & Frequency Relay)
The Rishabh combined voltage & frequency Protectors give continuous surveillance of the monitored circuit.

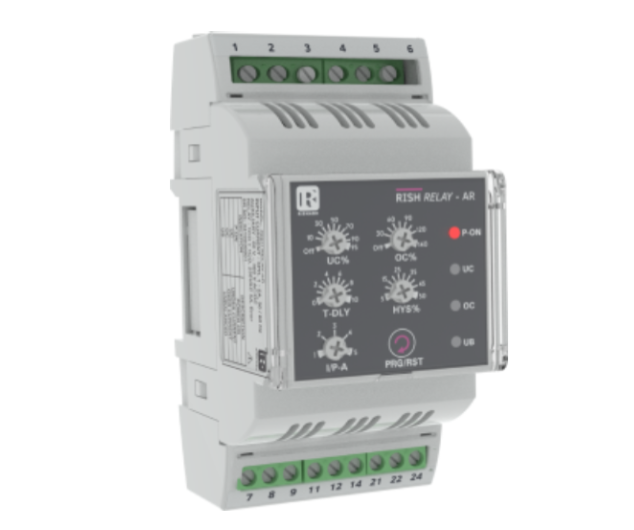

Current Protection Relay (RISH Relay - AR)
